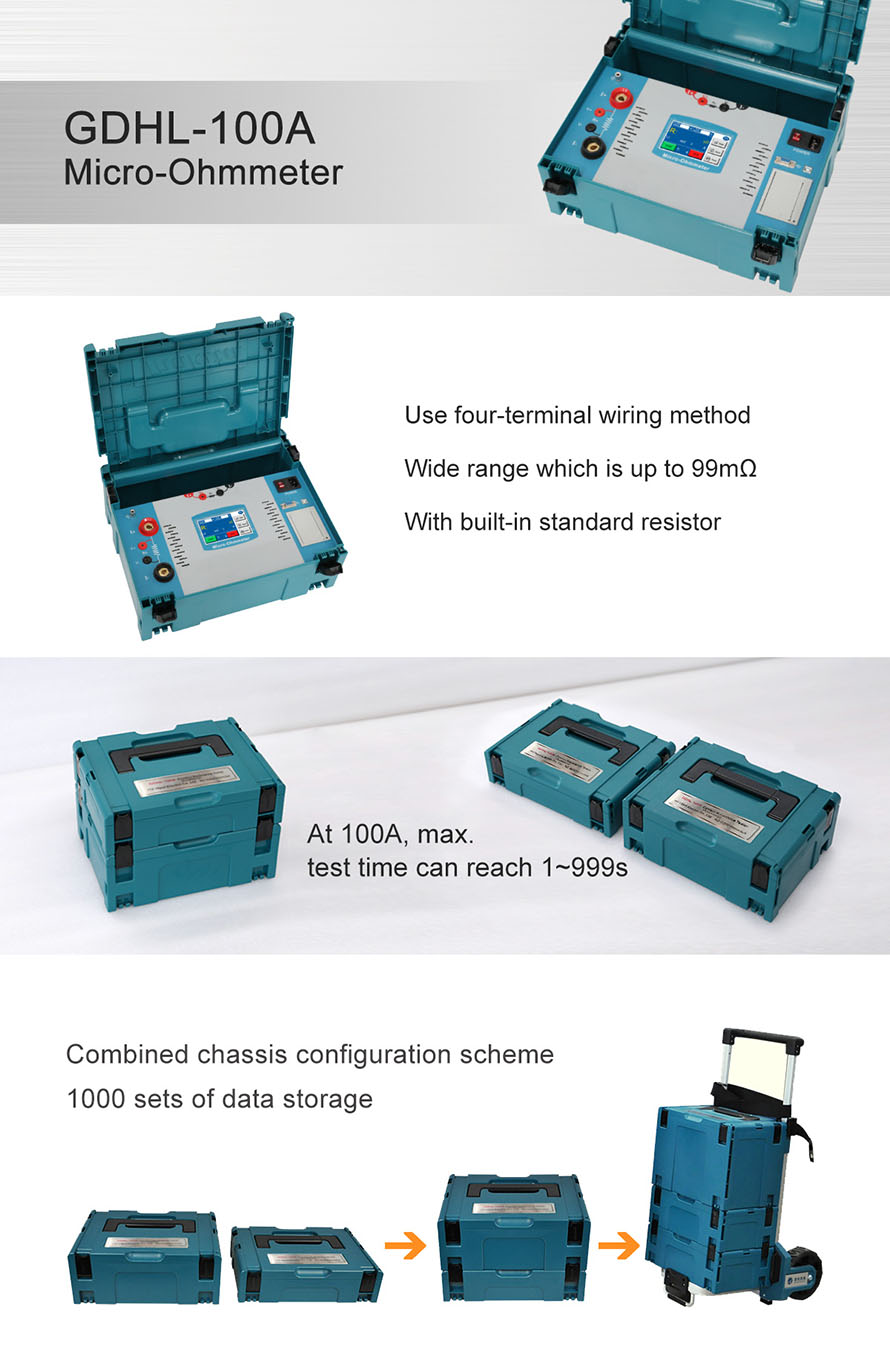

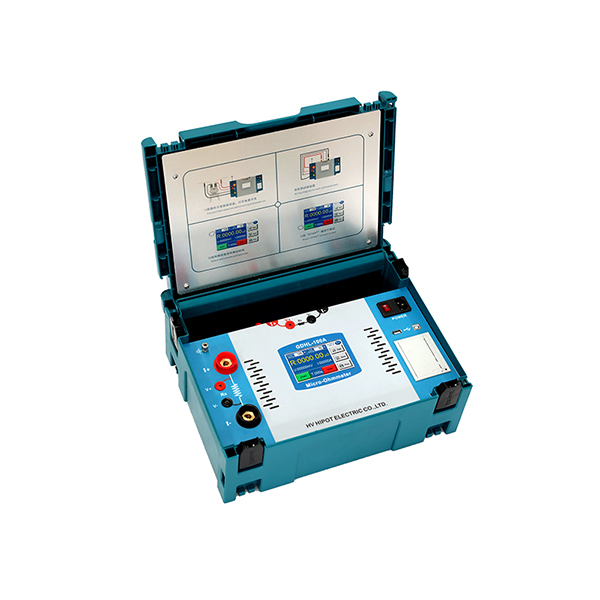

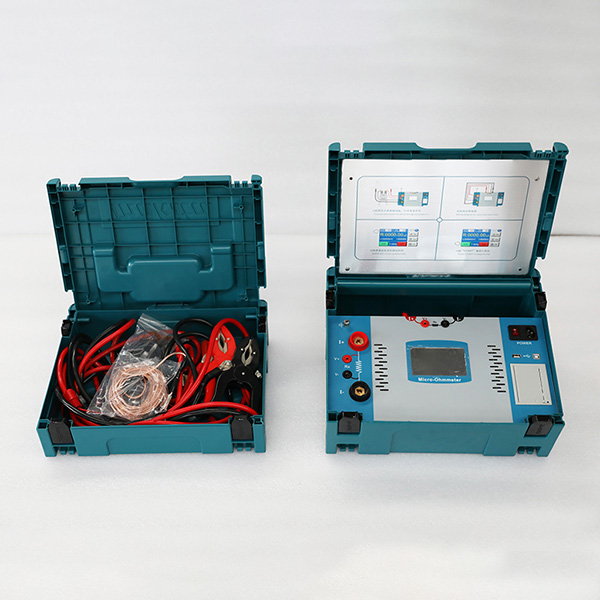

GDHL-200A (GDHL-100A) Micro-Ohmmeter New
GDHL-100A Micro-Ohmmeter 2020.8
Specification
Power supply | AC220V±10%, 50Hz |
Current steps | 50A, 100A, 150A, 200A, other is customized |
Measurement range | μΩ-99999μΩ; 50A:1μΩ-99999μΩ; 100A:1μΩ-50000μΩ 150A:1μΩ-33000μΩ; 200A:1μΩ-25000μΩ |
Accuracy | ± (readings*0.5%+0.1uΩ) |
Resolution | 0.01uΩ |
Digital display of resistance | 6 1/2 digit |
Output voltage of constant current source | ≤5V (10V optional) |
Measurement time | Multiple test times can be set. |
Power consumption | ≤1000W (≤500W) |
Data storage | 1000 sets |
Use conditions | -20℃~40℃, ≤80%RH (no condensing) |
Weight | <5kg |
