    • GDOT-80C Insulation Oil Breakdown Tester 80kV

    GDOT-80C Insulation Oil Breakdown Tester 80kV

    There is a large number of electrical equipment in the power system, railway system and large petrochemical plant mines and enterprises, their internal insulation is mostly oil-filled insulation.

    facebook sharing button
    twitter sharing button
    linkedin sharing button
    pinterest sharing button
    vk sharing button
    whatsapp sharing button
    sharethis sharing button
    Chat Now
    Product Introduction

    GDOT-80C Insulation Oil Breakdown Tester 80kV

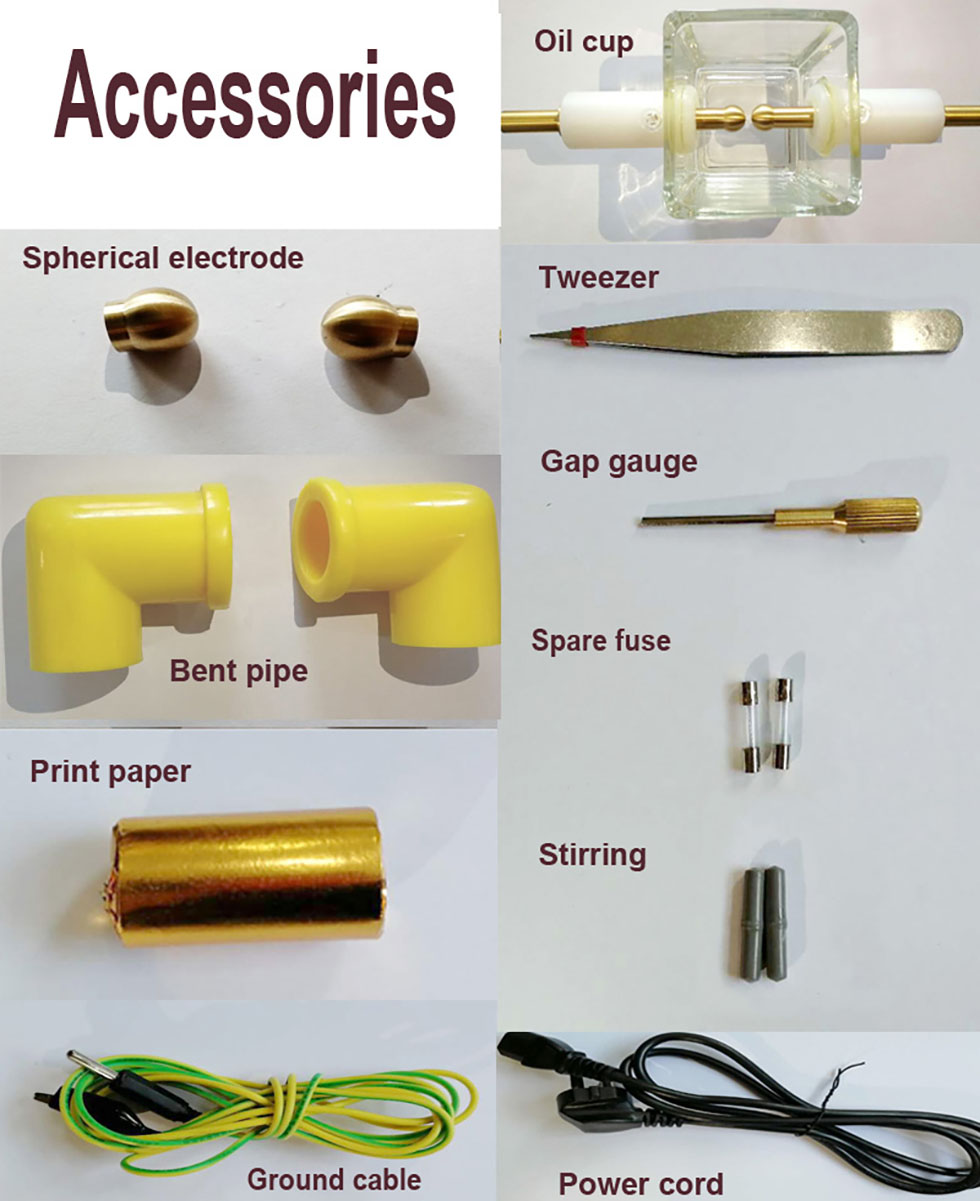

    GDOT-80C instrument 1 piece
    Oil cup(250ml)1 piece
    Power cord
    		1 piece
    Ground cable1 piece
    Spare fuse 2 piece
    Stirring nut2 piece
    Standard 2.5mm1 piece
    Tweezer1 piece
    Print paper1 rolls
    User's guide1 copy
    Factory test report1 copy

    accessories

    Other electrode is optional

    Other electrode is optional
    Other electrode is optional1


    Specification



    ● Output voltage: 0-80kV
    ● Power distortion rate: <1%
    ● Capacity: 1.5kVA
    ● Oil cup: 240ml
    ● Measurement accuracy: ±3%
    ● Voltage increasing rate: 2kV/s, 3kV/s optional , error: 0.2kV/s
    ● Power input: AC220V± 20%, 50Hz±5Hz
    ● Power: <200W
    ● Working temperature: 0-40℃
    ● Humidity: <85%RH
    ● Dimension: 430*350*370mm
