GDB-IV Three Phase Transformer Turns Ratio Tester

The internal power module in the tester generates the three-phase power or two-phase power, which is output to the high voltage side of the transformer. Then the high voltage and low voltage are sampled at the same time. Finally, the group, ratio, error, and phase difference are calculated.

Chat Now

Product Introduction

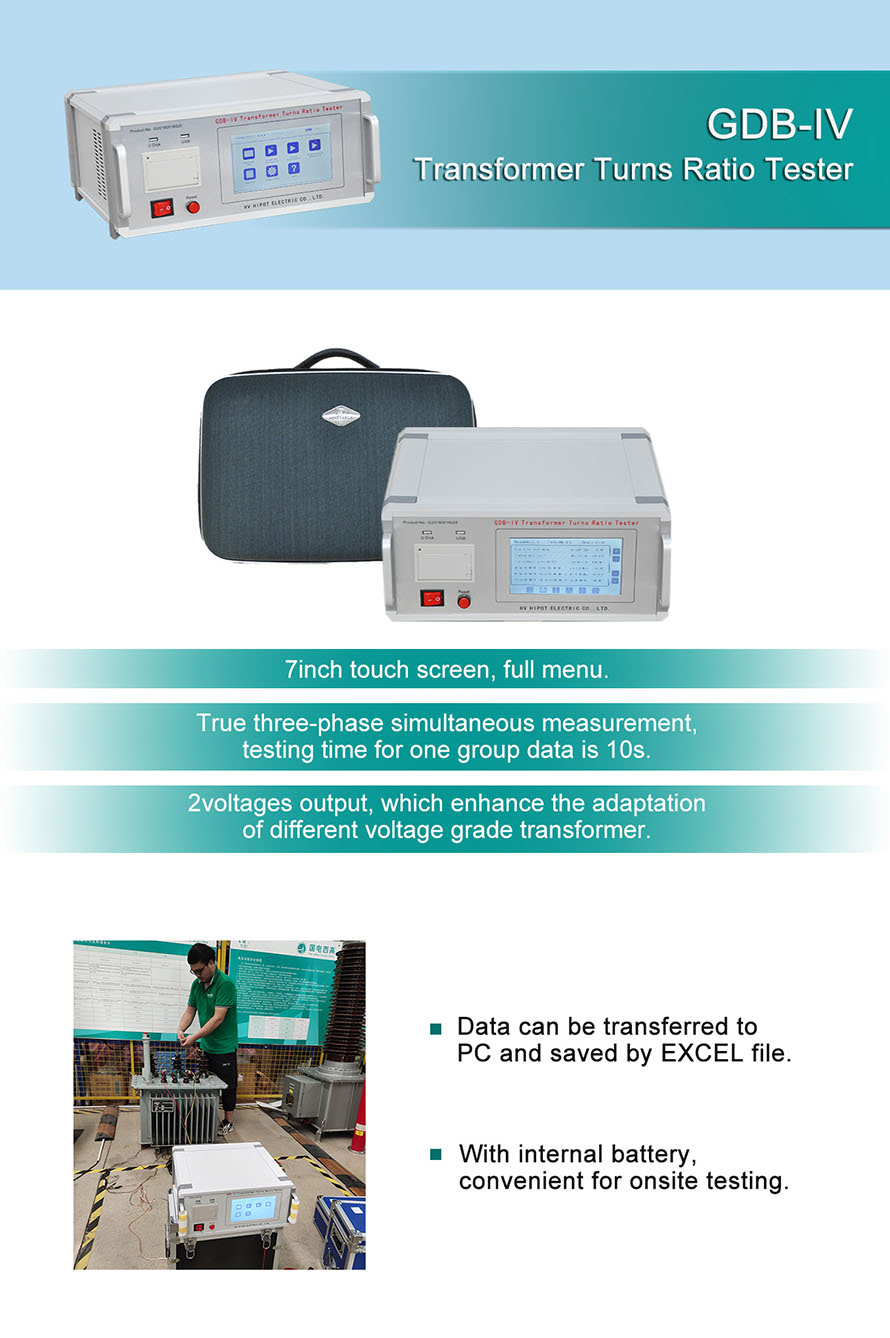

GDB-IV Three Phase Transformer Turns Ratio Tester

GDB-IV Three Phase Transformer Turns Ratio Tester 6

Specification

● Voltage ratio test range: 1-10000
● Group test range: 0-11
● Voltage ratio test accuracy

1-500	Class 0.1	High voltage
500-2000	Class 0.2	High voltage
2000-10000	Class 0.5	High voltage
1-100	Class 0.2	Low voltage(11V)
100-500	Class 0.5	Low voltage(11V)

● Voltage ratio resolution: 0.0001
● Angle accuracy: 0.1°
● Angle resolution: 0.01°
● Accuracy of current measurement: 1% FS+2digits
● Power Input: Lithium battery 12V 10Ah
● Dimension: 387*175*379mm
● Weight: 9kg
● Operating temperature: -20℃-40℃
● Relative moisture: ≤85%, no condensation
