GDZRC Series DC Winding Resistance Tester (GDZRC-10A)

GDZRC series DC winding resistance tester is designed to measure DC resistance of inductive devices, such as transformers and power inductors.It has the features of fast measurement, small size and high accuracy of measurement,which is ideal equipment of measuring transformer winding and DC resistance of big power inductance equipment.

Chat Now

Product Introduction

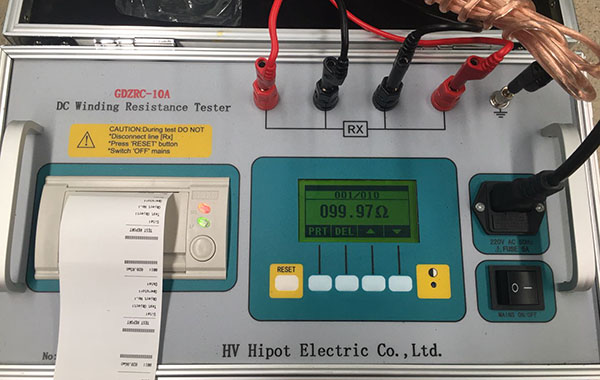

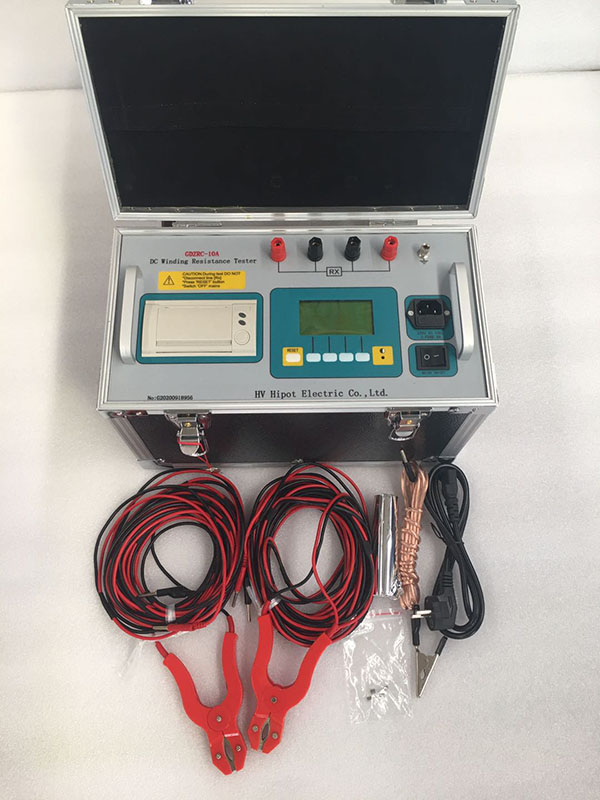

GDZRC Series DC Winding Resistance Tester (GDZRC-10A)

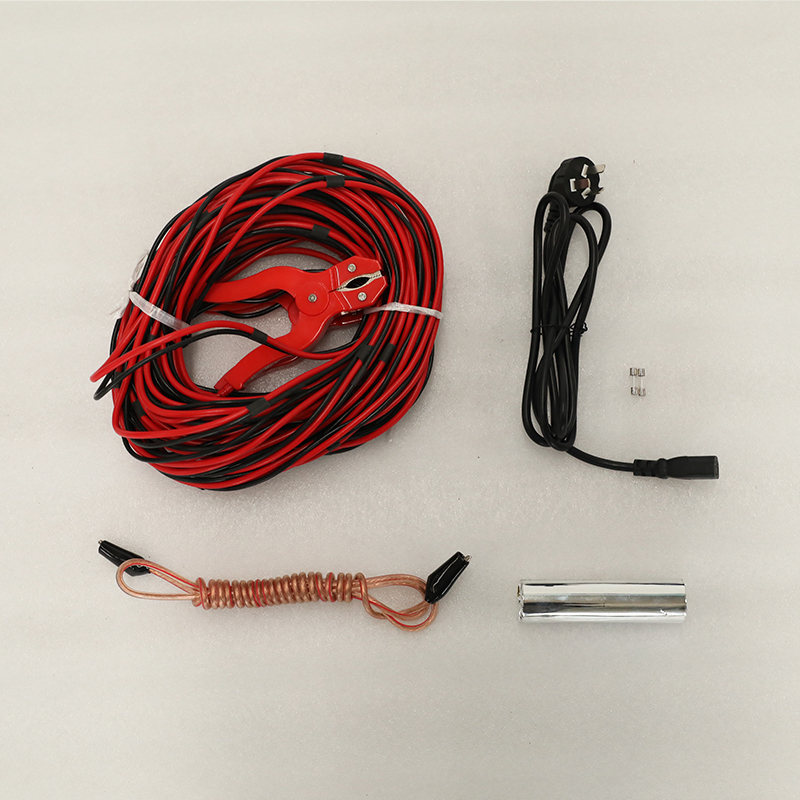

● Four leads measurement to ensure measuring accuracy.

● Program-controlled current source to increase measuring speed.
● Auto discharge and discharge indication function, to ensure safety and availability.

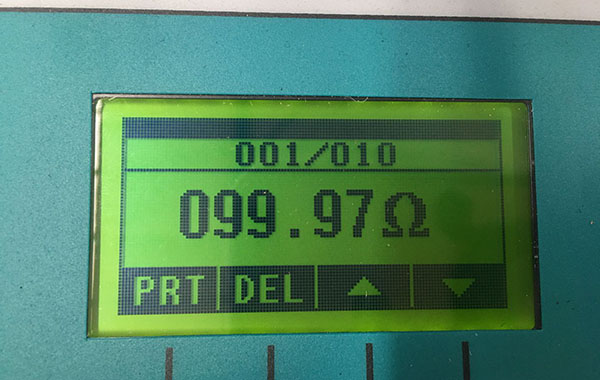

● LCD screen and Built-in Printer.

GDZRC-20A DC Winding Resistance Tester

Specification

Items	Specifications		Remark
Testing current	1mA 10mA 1A 5A 10A
Measurement range	1mA: 10mA: 1A: 5A: 10A:	1Ω-20KΩ 1Ω-2KΩ 10mΩ-20Ω 1mΩ-4Ω 1mΩ-2Ω

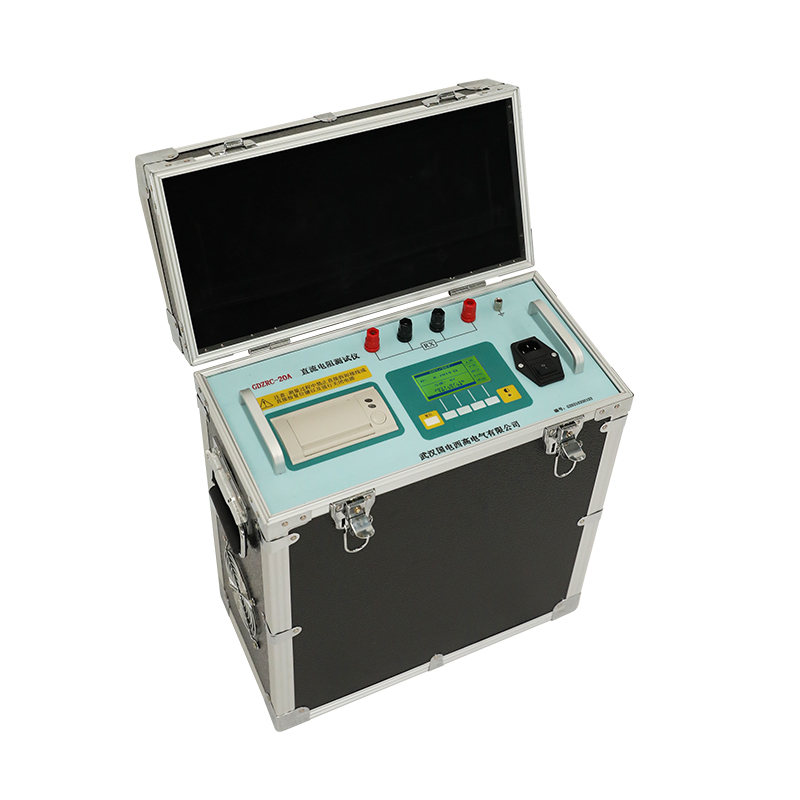

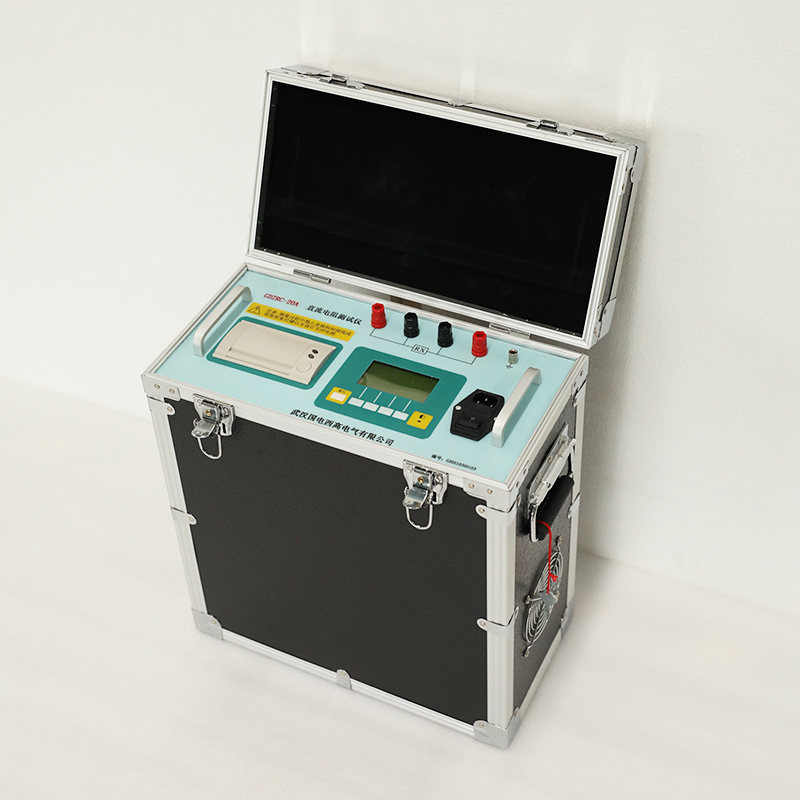

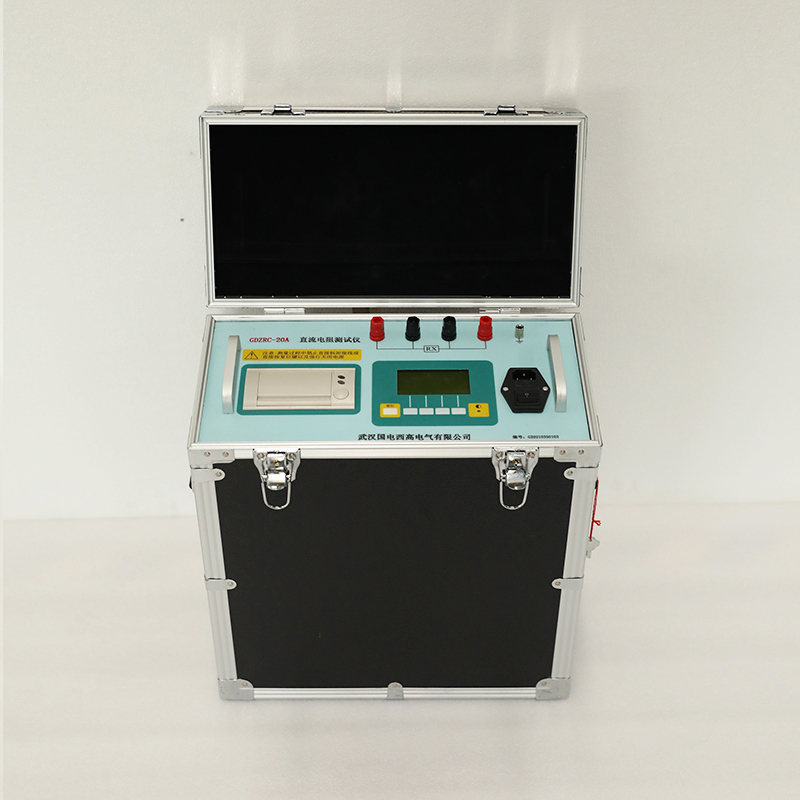

GDZRC-20A DC Winding Resistance Tester
Testing current	1A 5A 10A 20A
Measurement range	1A: 10mΩ～20Ω 5A: 1mΩ～4Ω 10A: 1mΩ～2Ω 20A: 1mΩ～1Ω
Weight	About 10kg
GDZRC series DC Winding Resistance Tester GDZRC-40A
Testing current	2.5A 5A 10A 20A 40A
Measurement range	2.5A:10mΩ-8Ω 5A: 1mΩ-4Ω 10A: 1mΩ-2Ω 20A: 1mΩ-1Ω 40A:1mΩ-500mΩ
Weight	About 32kg
Accuracy	±0.2% of full range ±2digit
Data storage	255pcs
Display	LCD screen		4 1/2 digit
Max.resolution	0.1μΩ
Power supply	AC 220V±22V, 50Hz±2 Hz		Fuse 5A
Max.power consumption	300W		Testing current is 10A
Working environment	Temperature: 0-40℃ Relative humidity: ≤80%
Dimension	200400280mm
Weight	About 6kg
