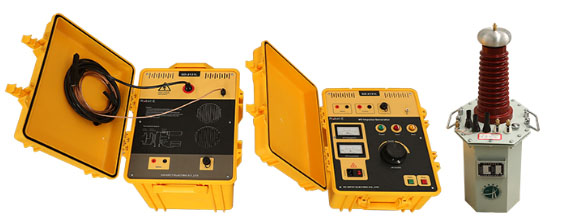

GD-2136H Cable Fault Locating System
GD2136H Cable Fault system is important tool to maintain all kinds of cables. It uses various detection way to test cable faults, which is suitable for different levels voltage power cables and communication cables.
The system contains below units:
1. GD-2131H Impulse Generator
2. GD-2132 Cable Fault Locator
3. GD-2133 Cable Fault Tester
4. Other accessories
GD-2131H Impulse Generator
It's used to generate HV impulse when using impulse flashover method to detect high impedance fault.
Specification
● Max.testing distance: 15km(Open wire up to 100km).
● Blind detection: 1m
● Resolution: 1m
● Power consumption: 5VA
● Environmental temperature: 0-40℃(limit temperature:-10℃-50℃)
● Relative humidity: 40℃(20～90) %RH
● Atmospheric pressure: 86-106Kpa
● Size: 275*220*160mm
● Weight: 1.8kg
