GDPQ-5000 Power Quality Analyzer

GDPQ-5000 Power Quality Analyzer

1. Measurement function
● Waveform real-time display (4 channels voltage/4 channels current).
● True RMS values of voltages and currents.
● The DC components of voltages.
● Peak current and voltage values.
● Minimum and maximum half-cycle RMS current and voltage values.
● Phasor diagram display.
● Measurement of each harmonic up to order 50.
● Bar charts show harmonic ratios of current and voltage of each phase.
● Total harmonic distortion (THD).
● Active, reactive, apparent power, by phase and cumulative.
● Active, reactive, apparent energy, by phase and cumulative.
● Transformer K factor.
● Power factors (PF) and displacement factors (DPF or COSΦ).
● Short-term voltage flicker (PST).
● Three phase unbalance(current and voltage).

2. Transient capture function
Monitoring instantaneous change of power grid voltage current parameters, including the voltage current fluctuations, voltage current surge, sag and short supply interruption, temporary overvoltage, impact current and Current voltage instantaneous distortion. Instruments can store 150 sets of transient waveform at the same time.

3. Starting current monitoring
Monitoring surge current of line and the startup current when electrical equipment is starting, help to correctly design capacity. Can be display the RMS rising / falling curve In the startup process, the envelope curve of startup current, waveform of 4 channels current and 4 channels voltage. Recording about 100s after trigger, storage the current /voltage instantaneous and waveform curve of each cycle in 100s.

4. Trend chart recording and storing function
Store all the test parameters of basic test functions (Urms, Uthd, Ucf, Uunb, Hz, Vrms, Vthd, Vcf, Vunb, PST, Arms, Athd, Acf, Aunb, KF,W, VAR, VA, PF, COSφ, TANφ),50 voltage harmonics, 50 current harmonics. And create the trend curve. Record data for a long time according to need(concurrent selection 20 parameters to record data for once every five seconds, you can record about 300 days.).

5. Alarm function
Set the limit values according to need, monitoring the values whether overshoot, if overshoot will generate an alarm log, such as: voltage, current, unbalance, harmonic ratio, frequency, active power, total harmonic distortion. You can configure 40 different alarms, each group can set different monitoring parameters (including 50 harmonics, total of 123 different parameters) and limit values, also can set the shortest time of overshoot. The log can contain up to 12,800 alarms.

6. Snapshot function
Any screen can be saved(screen snapshot), at the same time automatically records the time and test mode. Such as can save voltage and current waveform, harmonic bar chart, phasor diagram etc. It can save a maximum of 60 screen snapshot.

7. Communication function
Communicate with computer via USB, Monitoring software can display waveform of power quality analysis, read of the transient waveform, trend chart recording, alarm log, screenshots, and display on the computer.

8. Setting function
The user can configuration of the time and date, configuration of the screen contrast and brightness, definition of each phase curve colours.
Choice of type of connection to the network.
Configuration of the type of the current sensors and voltage ratios.

9. Help menu
Every stage of operation can press the "help" key to obtain relevant information.

1. Base condition and working condition

2. General specification

3. Instrument precision (excluding the current sensor)

Respectively introduce the following data (on the basic of base conditions and the ideal current sensors, perfectly linear, no phase shift).

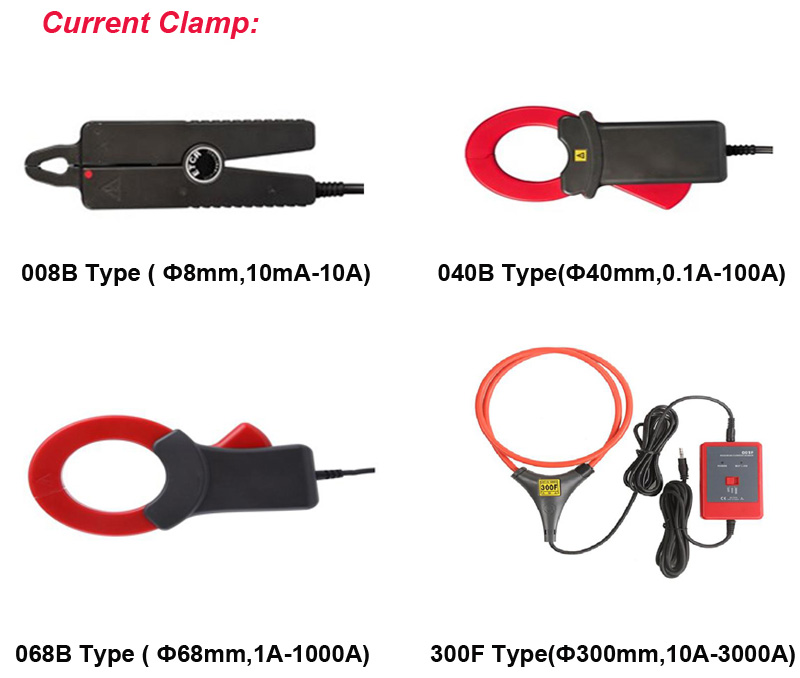

4. Current sensor character

Note: current clamp and instruments must be connected to the corresponding, cannot be inserted opposite.
