GDSF-411CPD SF6 Gas Comprehensive Analyzer
GDSF-411CPD SF6 gas comprehensive analyzer is a portable device designed to measure SF6 gas dew point, purity and decomposition product. The core component with chilled mirror method is used to test dew point, European sensor with infrared method to test SF6 gas purity and electrochemical sensor from Membrapor to test SF6 gas decomposition product. Besides, we also adopt professional hardware chips and excellent software algorithms of STMicroelectronics.

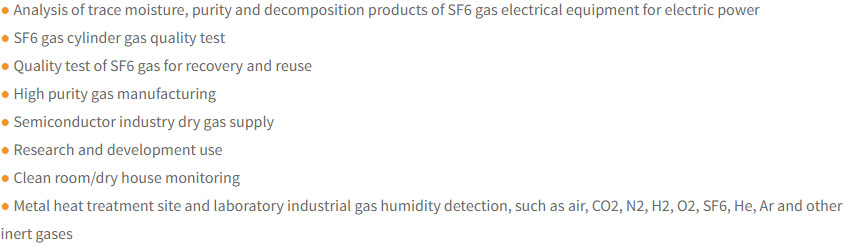

Specification
SF6 Humidity
| Measurement method | Chilled mirror method (Stirling Refrigeration) |
| Measurement range | Dew point -100℃--+20℃(90s for single point measurement), error: better than ±0.2℃ |
| Repeat-ability | ± 0.1 ℃ |
| Resolution | 0.01℃ |
| Display unit | ℃, ppm, ℃ P20(converted value at 20℃) |
SF6 Purity
| Measurement method | Infrared Measurement Principle (NDIR series sensors) |
| Measuring range | 0 ~ 100% SF6, error: better than ± 0.3%F.S. |
| Response time | [90%] 60s |
| Repeatability | ± 0.3% |
| Resolution | 0.01% |
| Display unit | % |
SF6 Decomposition Products
| Measurement method | Electrochemical Measurements Principle (Electrochemical series sensors from Membrapor) |
| Measurement range | SO2: 0 ~ 200ppmv H2S: 0 ~ 200ppmv CO: 0 ~ 500ppmv HF: 0 ~ 50ppmv |
| Accuracy | SO2: 10ppmv ±3% H2S: 10ppmv ±3% CO: 50ppmv ±4% HF: 10ppmv ±3% |
| Repeat-ability | SO2: 10ppmv ±2% H2S: 10ppmv ±2% CO: 50ppmv ±2% HF: 10ppmv ±2% |
| Resolution | 0.01ppmv |
| Display unit | ppmv |
General Parameters
| Power supply | 220VAC±10%, 50Hz, AC/DC use, continuous working is more than 8 hours. |
| Use environment temperature | -20--+60℃ |
| Environment humidity | 90%RH |
| Measurement value influence | No effect of pressure and flow |
| Dimension | 570*420*280mm |
| Weight | Not more than 20kg. |
